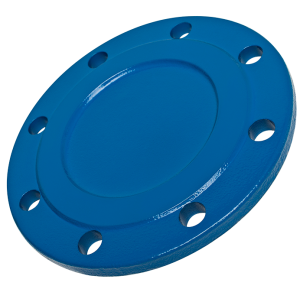

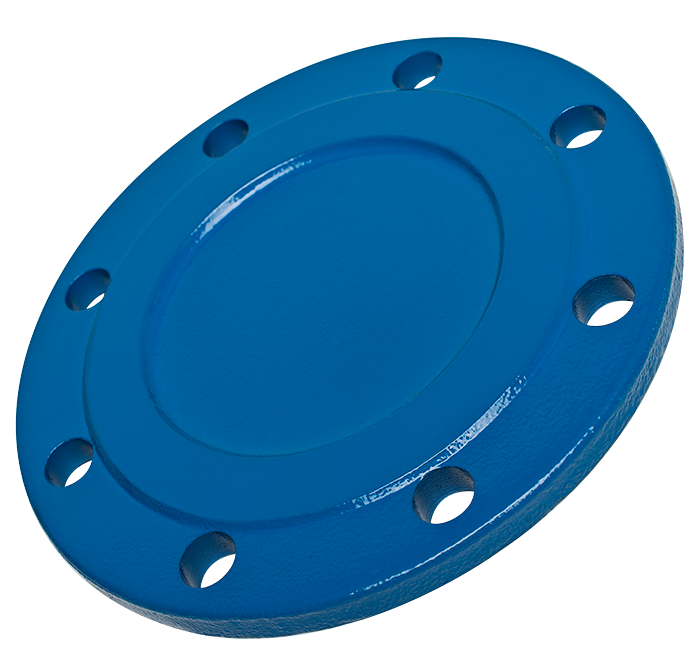

Technical Characteristics
- Flange end connections according to EN1092-2: PN10/PN16
- Designed according to EN545
- Maximum working pressure: PN16 / 16 bar
- Working temperature: 0°C – +70°C
- Color RAL5015
- Powder epoxy coating 250 μm thickness
- Body from ductile iron EN-GJS-500-7

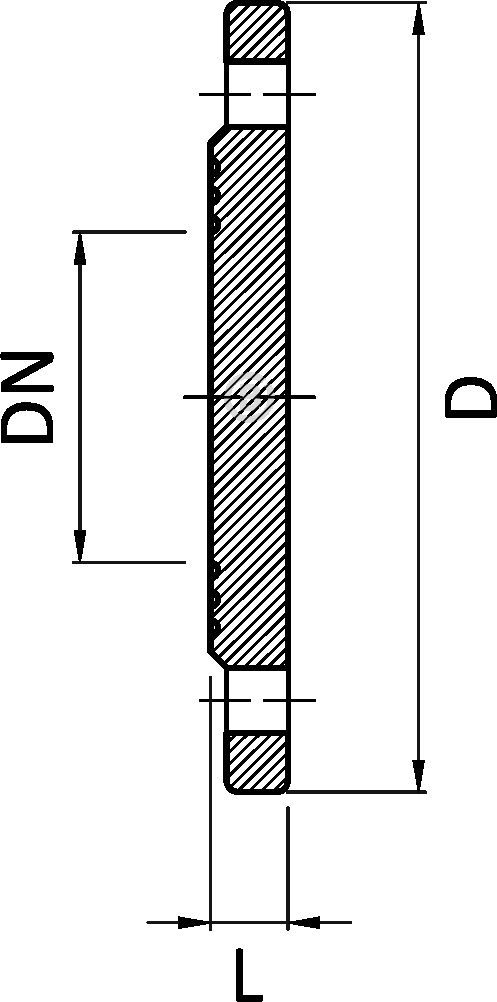

Dimensions
| DN |
Flanged drill. |
D |
L |
Weight |
Stock |
| 50 |
PN10/16 |
165 |
19 |
2.4 |
Stocked |
| 65 |
PN10/16 |
185 |
19 |
2.8 |
Stocked |
| 80 |
PN10/16 |
200 |
19 |
3.5 |
Stocked |
| 100 |
PN10/16 |
220 |
19 |
4.1 |
Stocked |
| 150 |
PN10/16 |
285 |
19 |
8.1 |
Stocked |
| 200 |
PN10/16 |
340 |
20 |
9 |
Stocked |
| 250 |
PN10/16 |
400 |
22 |
18.7 |
Stocked |
| 300 |
PN10/16 |
455 |
24.5 |
23.5 |
Stocked |
| 400 |
PN10/16 |
565 |
24.5 |
41.1 |
Stocked |
| 500 |
PN10/16 |
670 |
26.5 |
61.1 |
Stocked |
| 600 |
PN10/16 |
780 |
30 |
94.1 |
Stocked |
