Universal Pipe Coupling
Application Universal coupling is used for connecting pipes from various materials Design features Large tolerance The bolt ends are protected with plastic caps Technical Characteristics Maximum working pressure: PN16 / 16 bar Working temperature: 0°C – +70°C Color RAL5015 Powder epoxy coating 250 μm thickness Bolts, buts and washers – carbon steel 8.8 hot dip galvanized Maximum angular deflection – 4° Dimensions DN O.D Range D Bolts Bolt Qty. Weight Stock 50 57-... -
Universal Flange Adaptor
Application Universal flange adaptor is used for connecting various pipe materials with flanged fittings Design features Large tolerance Universal drilling for compatibility with both PN10 and PN16 The bolt ends are protected with plastic caps Technical Characteristics Flange end connections according to EN1092-2: PN10/PN16 Maximum working pressure: PN16 / 16 bar Working temperature: 0°C – +70°C Color RAL5015 Powder epoxy coating 250 μm thickness Bolts, buts and washers – carbon ... -

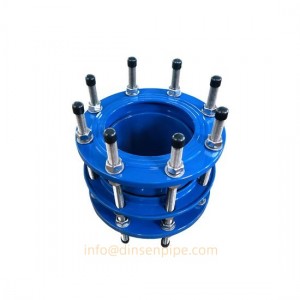

Dismantling Joint
Technical Characteristics Flange end connections according to EN1092-2: PN10/PN16 Designed according to EN545 Maximum working pressure: PN16 / 16 bar Working temperature: 0°C – +70°C Color RAL5015 Powder epoxy coating 250 μm thickness Body from ductile iron EN-GJS-500-7 Bolts, nuts and washers – hot dip galvanized 8.8 carbon steel Gasket – EPDM or NBR Dimensions DN Flange drill. D L1min L1max Bolts Qnty & Hole Size Weight 50 PN10/16 165 170 220 M16 4×19 9... -
Coupling for PE/PVC pipes
Application Restrained couplings dedicated for PE and PVC pipes Design features Restrained connection with brass ring prevents axial movement of the pipe Technical Characteristics Maximum working pressure: PN16 / 16 bar Working temperature: 0°C – +70°C Color RAL5015 Powder epoxy coating 250 μm thickness Bolts, nuts and washers: A2 stainless steel Locking ring- Brass Sealing gasket- EPDM Body- ductile iron EN-GJS-500-7 Dimensions DE L D L1 KG 63 171 124 80 2.6 75 175 138 8... -
Flange Adaptor for PE/PVC Pipes
Application Flange adaptors dedicated for PE and PVC pipes Design features Restrained connection with brass ring prevents axial movement of the pipe Technical Characteristics Flange end connections according to EN1092-2: PN10&PN16 Maximum working pressure: PN16 / 16 bar Working temperature: 0°C – +70°C Color RAL5015 Powder epoxy coating 250 μm thickness Bolts, nuts and washers – A2 stainless steel Sealing gasket EPDM Locking ring- brass Dimensions DN Flange drill. DE ... -
Flanged Tyton Socket
Application TYTON fittings for drinking water and neutral liquids up to +70°C Technical characteristcs Body – Ductile cast iron EN-GJS-500-7 According to DIN EN 545/598/BS4772/ISO2531 standards Maximum working pressure PN16 Working temperature: 0˚C- +70˚C Epoxy coating RAL5015 250 μm thickness or other coating based on request Push-on socket gaskets made from EPDM/NBR rubber Dimensions DN E L Kg 80 7 130 7.4 100 7.2 130 9 125 7.5 135 11.5 150 7.8 135 14.2 200 8.4 140 ... -
Double Socket Tyton tee with Flanged branch
Application TYTON fittings for drinking water and neutral liquids up to +70°C Technical characteristcs Body – Ductile cast iron EN-GJS-500-7 According to DIN EN 545/598/BS4772/ISO2531 standards Maximum working pressure PN16 Working temperature: 0˚C- +70˚C Epoxy coating RAL5015 250 μm thickness or other coating based on request Push-on socket gaskets made from EPDM/NBR rubber Dimensions DN dn L H KG 80 80 170 165 13.5 100 80 170 175 15.8 100 100 190 180 17.2 125 80 170 1... -
Tyton all socket T
Application TYTON fittings for drinking water and neutral liquids up to +70°C Technical characteristcs Body – Ductile cast iron EN-GJS-500-7 According to DIN EN 545/598/BS4772/ISO2531 standards Maximum working pressure PN16 Working temperature: 0˚C- +70˚C Epoxy coating RAL5015 250 μm thickness or other coating based on request Push-on socket gaskets made from EPDM/NBR rubber Dimensions DN dn L H KG 80 80 170 85 12.4 100 80 170 95 14.8 100 100 190 95 16.1 125 125 225 110... -
Tyton bend 11.25°
Application TYTON fittings for drinking water and neutral liquids up to +70°C Technical characteristcs Body – Ductile cast iron EN-GJS-500-7 According to DIN EN 545/598/BS4772/ISO2531 standards Maximum working pressure PN16 Working temperature: 0˚C- +70˚C Epoxy coating RAL5015 250 μm thickness or other coating based on request Push-on socket gaskets made from EPDM/NBR rubber Dimensions DN L E Kg 80 30 7 7.1 100 30 7.2 8.9 125 35 7.5 11.9 150 35 7.8 14.8 200 40 8.4 22 ... -
Tyton bend 22.5°
Application TYTON fittings for drinking water and neutral liquids up to +70°C Technical characteristcs Body – Ductile cast iron EN-GJS-500-7 According to DIN EN 545/598/BS4772/ISO2531 standards Maximum working pressure PN16 Working temperature: 0˚C- +70˚C Epoxy coating RAL5015 250 μm thickness or other coating based on request Push-on socket gaskets made from EPDM/NBR rubber Dimensions DN L E Kg 80 40 7 7.3 100 40 7.2 9.3 125 50 7.5 12.6 150 55 7.8 15.9 200 65 8.4 24 ... -
Tyton bend 45°
Application TYTON fittings for drinking water and neutral liquids up to +70°C Technical characteristcs Body – Ductile cast iron EN-GJS-500-7 According to DIN EN 545/598/BS4772/ISO2531 standards Maximum working pressure PN16 Working temperature: 0˚C- +70˚C Epoxy coating RAL5015 250 μm thickness or other coating based on request Push-on socket gaskets made from EPDM/NBR rubber Dimensions DN L E Kg 80 55 7 7.7 100 65 7.2 10.1 125 75 7.5 13.6 150 85 7.8 17.4 200 110 8.4 2... -
Tyton bend 90°
Application TYTON fittings for drinking water and neutral liquids up to +70°C Technical characteristcs Body – Ductile cast iron EN-GJS-500-7 According to DIN EN 545/598/BS4772/ISO2531 standards Maximum working pressure PN16 Working temperature: 0˚C- +70˚C Epoxy coating RAL5015 250 μm thickness or other coating based on request Push-on socket gaskets made from EPDM/NBR rubber Dimensions DN L E Kg 80 100 7 8.6 100 120 7.2 11.4 125 145 7.5 15.7 150 170 7.8 20.5 200 220 8...
