Short Description:

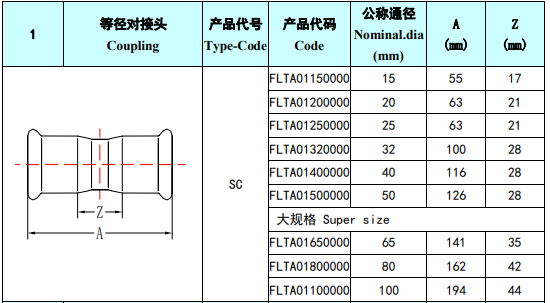

Name: Coupling
Size:DN15-100
Material: Stainless steel304/316L
Payment Terms: TT 30% as down payment and the balance paid before delivery in EXW per Incoterms 2010
Pacckage: Products apply general carton package, wooden tray or crane will charge extra cost.
Standard: Fittings conforms to GB/T19228 which are suitable for pipes with DIN EN10312-OD15/18/22/28/35/42/54/76.1/88.9/108 mm. Working pressure＜=1.6 mpa.
Fittings wall material varies with sizes: Size15/18/ 22/28/ 35/54 mm-1.5mm, Size 76.1/88.9/108mm-2.0mm.
② Fittings Thread conforms to GB/T 7306.1-2000 (equal to EN10226-1: 2004 or ISO7-1: 1994 ).
Warranty: Products featured a 2 years limitted wattanty under normal use.
Lead time: 45 days generally or negotiable
