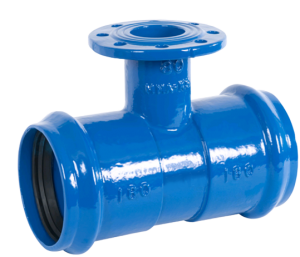

Application
PVC fittings for drinking water and neutral liquids up to +70°C
Technical characteristcs
- Body – Ductile cast iron EN-GJS-500-7
- According to DIN EN 545/598/BS4772/ISO2531 standards
- Maximum working pressure PN16
- Working temperature: 0˚C- +70˚C
- Maximum working pressure: PN16 / 16 bar
- Epoxy coating RAL5015 250 μm thickness or other coating based on request
- Push-on socket gaskets made from EPDM/NBR rubber

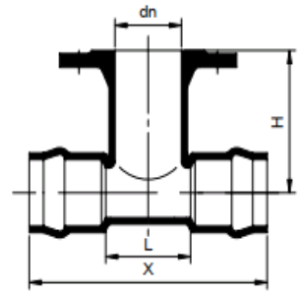

Dimensions
| DN | dn | L | H | X | KG |
|---|---|---|---|---|---|
| 63 | 50 | 70 | 140 | 239 | 5.89 |
| 63 | 65 | 80 | 140 | 249 | 6.78 |
| 75 | 50 | 70 | 140 | 247 | 6.52 |
| 75 | 65 | 85 | 140 | 262 | 7.50 |
| 90 | 50 | 75 | 145 | 266 | 7.60 |
| 90 | 65 | 90 | 155 | 281 | 8.72 |
| 90 | 80 | 105 | 160 | 296 | 9.54 |
| 110 | 50 | 75 | 145 | 279 | 9.40 |
| 110 | 65 | 90 | 165 | 294 | 10.10 |
| 110 | 80 | 105 | 170 | 309 | 10.95 |
| 110 | 100 | 125 | 170 | 329 | 12.21 |
| 125 | 40 | 65 | 160 | 278 | 9.26 |
| 125 | 50 | 75 | 150 | 288 | 9.94 |
| 125 | 65 | 90 | 160 | 303 | 11.11 |
| 125 | 80 | 105 | 170 | 318 | 12.05 |
| 125 | 100 | 125 | 180 | 338 | 13.53 |
| 125 | 125 | 150 | 180 | 363 | 15.40 |
| 140 | 40 | 65 | 160 | 289 | 10.58 |
| 140 | 65 | 90 | 180 | 314 | 12.72 |
| 140 | 80 | 105 | 185 | 329 | 13.64 |
| 140 | 100 | 125 | 195 | 349 | 15.18 |
| 140 | 125 | 150 | 200 | 374 | 17.34 |
| 160 | 50 | 75 | 170 | 313 | 13.34 |
| 160 | 65 | 90 | 190 | 328 | 14.77 |
| 160 | 80 | 105 | 200 | 343 | 15.84 |
| 160 | 100 | 125 | 205 | 363 | 17.38 |
| 160 | 125 | 150 | 210 | 388 | 19.58 |
| 160 | 150 | 175 | 220 | 413 | 22.47 |
| 200 | 65 | 125 | 215 | 385 | 19.98 |
| 200 | 80 | 140 | 225 | 400 | 21.18 |
| 200 | 100 | 160 | 230 | 420 | 22.91 |
| 200 | 125 | 185 | 240 | 445 | 25.45 |
| 200 | 150 | 210 | 245 | 470 | 28.38 |
| 200 | 200 | 260 | 250 | 520 | 33.81 |
| 225 | 65 | 125 | 215 | 402 | 23.05 |
| 225 | 80 | 140 | 225 | 417 | 24.31 |
| 225 | 100 | 160 | 230 | 437 | 26.07 |
| 225 | 125 | 185 | 240 | 462 | 28.71 |
| 225 | 150 | 210 | 245 | 487 | 31.68 |
| 225 | 200 | 260 | 260 | 537 | 37.40 |
| 250 | 65 | 140 | 250 | 417 | 27.83 |
| 250 | 80 | 155 | 250 | 450 | 29.15 |
| 250 | 100 | 175 | 255 | 470 | 31.13 |
| 250 | 125 | 200 | 260 | 495 | 33.77 |
| 250 | 150 | 225 | 265 | 520 | 36.96 |
| 250 | 200 | 275 | 275 | 570 | 42.90 |
| 250 | 250 | 325 | 285 | 620 | 50.86 |
| 315 | 65 | 140 | 290 | 477 | 38.78 |
| 315 | 80 | 155 | 295 | 492 | 40.37 |
| 315 | 100 | 175 | 300 | 512 | 42.74 |
| 315 | 125 | 200 | 305 | 537 | 45.91 |
| 315 | 150 | 225 | 310 | 562 | 49.50 |
| 315 | 200 | 275 | 310 | 612 | 55.97 |
| 315 | 250 | 325 | 310 | 662 | 64.02 |
| 315 | 300 | 375 | 310 | 712 | 72.82 |
| 355 | 65 | 140 | 320 | 501 | 47.85 |
| 355 | 80 | 155 | 325 | 516 | 49.67 |
| 355 | 100 | 175 | 330 | 536 | 52.32 |
| 355 | 150 | 225 | 340 | 586 | 59.84 |
| 355 | 200 | 275 | 350 | 636 | 67.43 |
| 355 | 250 | 325 | 360 | 686 | 76.67 |
| 355 | 350 | 420 | 380 | 781 | 101.42 |
| 400 | 80 | 175 | 340 | 559 | 61.47 |
| 400 | 100 | 210 | 355 | 594 | 66.00 |
| 400 | 150 | 275 | 360 | 569 | 75.63 |
| 400 | 200 | 325 | 365 | 709 | 83.60 |
| 400 | 250 | 370 | 375 | 754 | 92.95 |
| 400 | 300 | 420 | 385 | 804 | 103.80 |
| 400 | 400 | 520 | 395 | 904 | 129.80 |
