Application

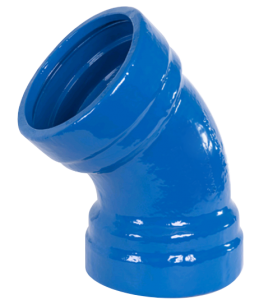

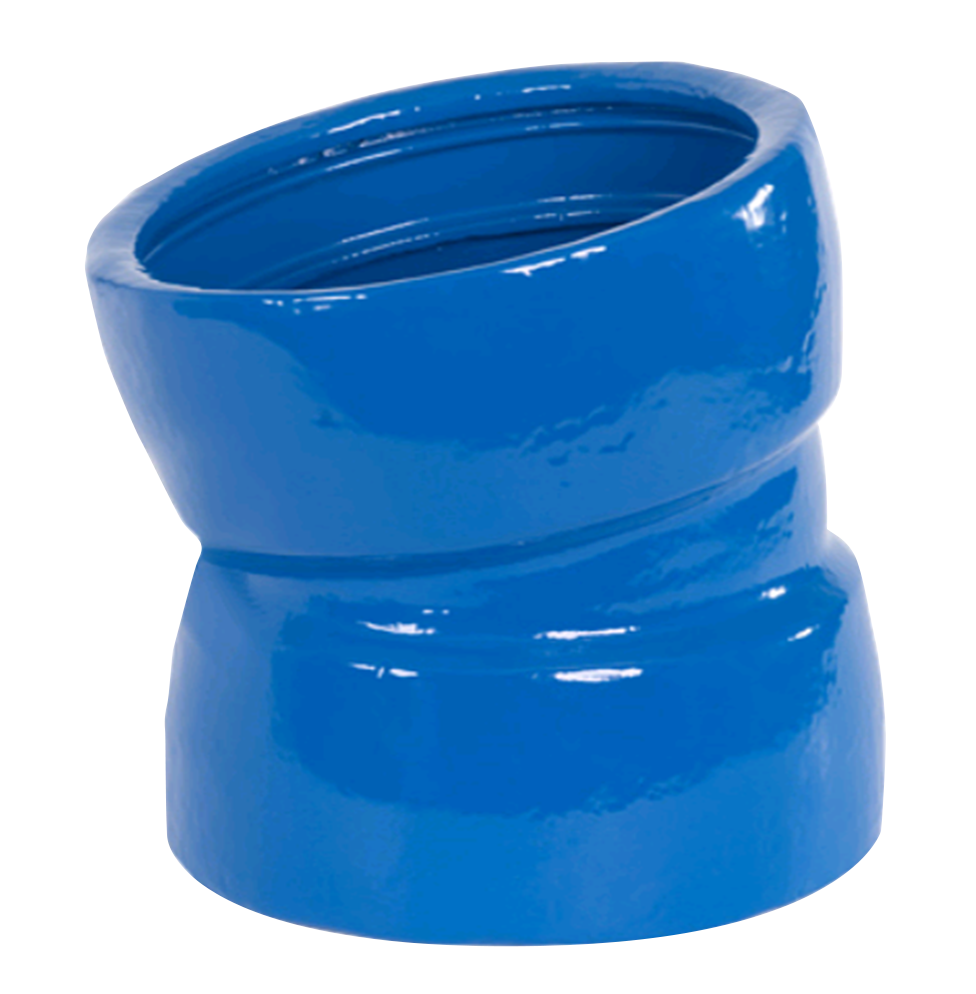

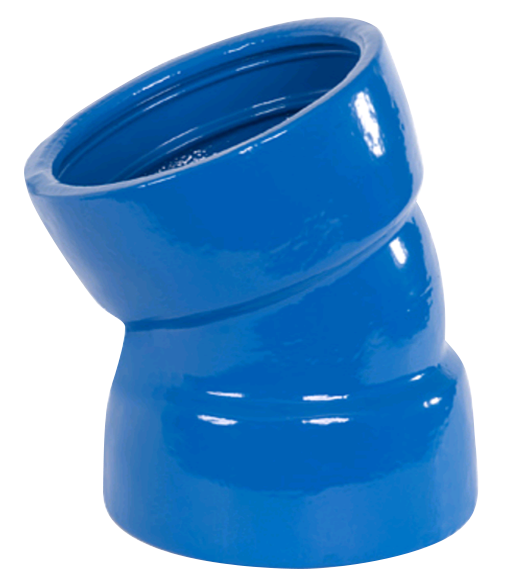

TYTON fittings for drinking water and neutral liquids up to +70°C
Technical characteristcs
- Body – Ductile cast iron EN-GJS-500-7
- According to DIN EN 545/598/BS4772/ISO2531 standards
- Maximum working pressure PN16
- Working temperature: 0˚C- +70˚C
- Epoxy coating RAL5015 250 μm thickness or other coating based on request
- Push-on socket gaskets made from EPDM/NBR rubber

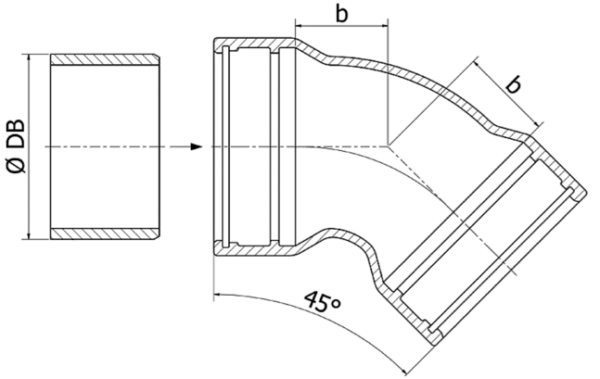

Dimensions
| DN | L | E | Kg |
|---|---|---|---|
| 80 | 55 | 7 | 7.7 |
| 100 | 65 | 7.2 | 10.1 |
| 125 | 75 | 7.5 | 13.6 |
| 150 | 85 | 7.8 | 17.4 |
| 200 | 110 | 8.4 | 27 |
| 250 | 130 | 9 | 38.5 |
| 300 | 150 | 9.6 | 53 |
| 350 | 175 | 10.2 | 70 |
| 400 | 195 | 10.8 | 89 |
| 450 | 220 | 11.4 | 117 |
| 500 | 240 | 12 | 139 |
| 600 | 285 | 13.2 | 202 |
| 700 | 330 | 14.4 | 282 |
| 800 | 370 | 15.6 | 378 |
| 900 | 415 | 16.8 | 496 |
| 1000 | 460 | 18 | 635 |
| 1100 | 505 | 19.2 | 855.55 |
| 1200 | 550 | 20.4 | 986 |
| 1400 | 515 | 22.8 | 1273 |
| 1500 | 540 | 24.0 | 2025 |
| 1600 | 565 | 25.2 | 1740 |
