Application
Ductile cast iron fittings for drinking water and neutral liquids up to +70°C
Technical Characteristics
- Flange end connections according to EN1092-2: PN10/PN16
- Designed according to EN545
- Maximum working pressure: PN16 / 16 bar
- Working temperature: 0°C – +70°C
- Color RAL5015
- Powder epoxy coating 250 μm thickness
- Body from ductile iron EN-GJS-500-7

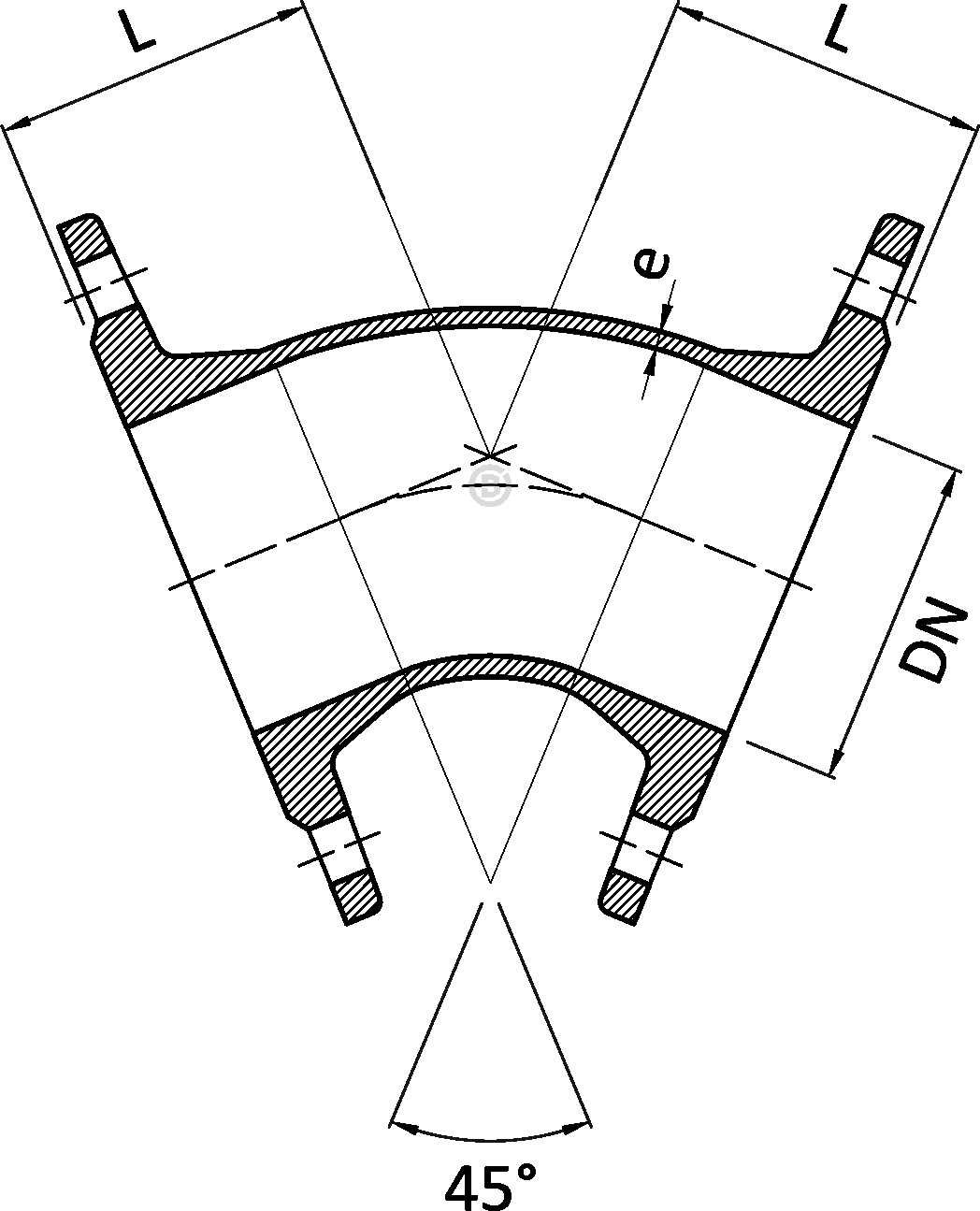

Dimensions
| DN | Flange drilling | L | e | Weight | Stock |
|---|---|---|---|---|---|
| 50 | PN10/16 | 150 | 7 | 7,6 | Stocked |
| 65 | PN10/16 | 160 | 7 | 8,7 | Stocked |
| 80 | PN10/16 | 130 | 7 | 9,3 | Stocked |
| 100 | PN10/16 | 140 | 7,2 | 11,3 | Stocked |
| 150 | PN10/16 | 160 | 7,8 | 19,0 | Stocked |
| 200 | PN10 | 180 | 8,4 | 28,0 | Stocked |
| 250 | PN10 | 350 | 9,0 | 62,0 | Stocked |
| 300 | PN10 | 400 | 9,6 | 81,0 | Stocked |
