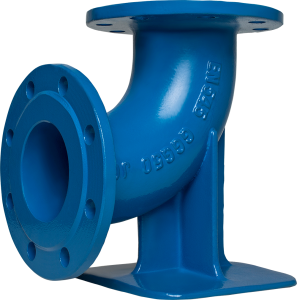

Technical Characteristics
- Flange end connections according to EN1092-2: PN10/PN16
- Designed according to EN545
- Maximum working pressure: PN16 / 16 bar
- Working temperature: 0°C – +70°C
- Color RAL5015
- Powder epoxy coating 250 μm thickness
- Body from ductile iron EN-GJS-500-7

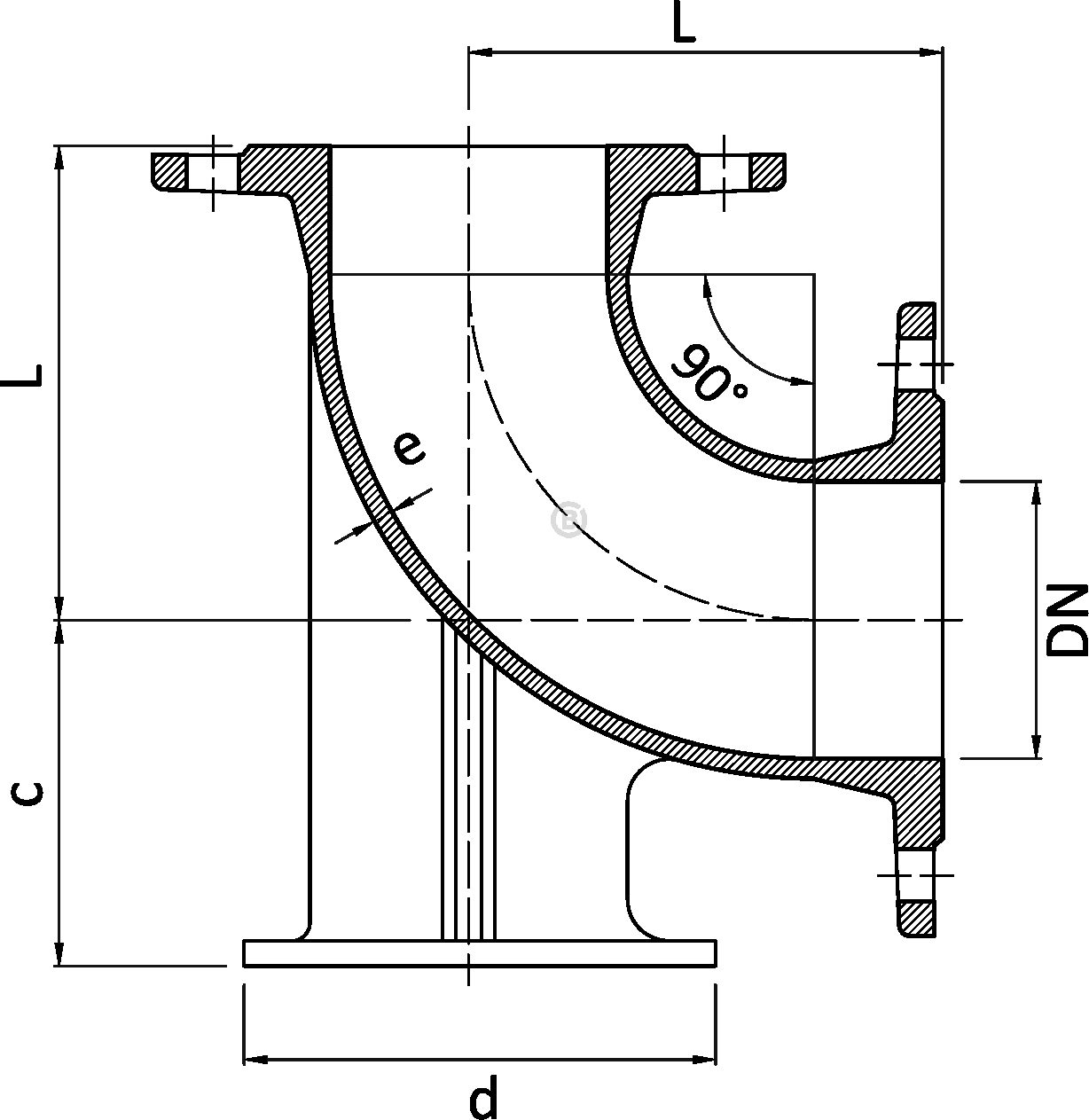

Dimensions
| DN |
Flange drill. |
L |
C |
d |
e |
Weight |
Stock |
| 50 |
PN10/16 |
150 |
95 |
150 |
7 |
7.2 |
Stocked |
| 80 |
PN10/16 |
165 |
110 |
180 |
7 |
12.2 |
Stocked |
| 100 |
PN10/16 |
180 |
125 |
200 |
7.2 |
15 |
Stocked |
| 150 |
PN10/16 |
220 |
160 |
250 |
7.8 |
30.5 |
Stocked |
| 200 |
PN10 |
260 |
190 |
300 |
8.4 |
47.5 |
Stocked |
| 250 |
PN10 |
350 |
225 |
350 |
9 |
76.8 |
Stocked |
| 300 |
PN10 |
400 |
255 |
400 |
9.6 |
109 |
Stocked |
| 400 |
PN10 |
500 |
320 |
500 |
10.8 |
185 |
Stocked |
| 500 |
PN10 |
600 |
385 |
600 |
12 |
292 |
Stocked |
| 600 |
PN10 |
700 |
450 |
700 |
13.2 |
446 |
Stocked |
