A(AMERICAN) type hose clamp
Name : A(AMERICAN) type hose clap
Material:
W2-Band,housing With All Stainless Steel 300 Zinc-plated Screw.
Band.housing&screw With All Stainless Steel300
Standards: Q676
A(American) Type Hose Clamp-8mm Wrench 6mm or 6.3mm
A(American)Type Hose Clamp-12.7mm Wrench 8mm
A(American) Type Hose Clamp-14.2mm/15.8mm
Other specifications can be customized according to requirements. -
Rubber link clips
Material :W1-AllZinc-Plated
W4-AllStainless Steel301 or304
Other specifications can be customized according to requirements
Standard:Band Width12mm，Hole5.3mm
Band Width 15mm，Hole6.4mm
Band Width 20mm，Hole8.4mm
Available on Request: Band width 9mm or25mm -
Clamp with sping system-8MM head of screw-127mm/142mm
Name :
Clamp with sping system-8MM head of screw-127mm/142mm
Material:
W4-Band,housing&screw With All stainless Steel 300 -
Mini hose clamp W1/W4
Material: W1-Band.Screw &Nut with all Zinc-Plated
W4-Band.Screw &Nut with all Stainless Steel300
Other specifications can be customized according to requirements -
American Hose Clamp Type Throat Hoop
The American cross throat tube stock is also known as the American Hose Clamp Type Throat Hoop. The throat hoop is small, low price, but the effect is huge. American stainless steel throat hoop is divided into big American and small American band, broadband is 12.7mm and 14.2mm respectively. This product is suitable for 30mm, beautiful appearance after assembly. It is characterized by small worm friction, suitable for high-grade models, rod holding equipment, steel pipe and hose or anti-corrosion material part connection.
Product presentation:
1.laryngeal hoop screw to "stainless steel one word" "iron nickel cross" "stainless steel cross" three categories.
2.Use of 304 stainless steel. The inscription "304 52-76" indicates that the product uses 304 stainless steel, with a minimum diameter of 52 and a maximum diameter of 76.
3.The product has a steel strip width of 11.95mm and is 0.68mm thick.
4.On the market, this product is generally 0.6-0.65mm thickness, our this thickness is 0.6-0.8mm.
5.This hoop clamp is available in a variety of styles, made of 304 stainless steel, so that the product has good permeability resistance, corrosion resistance, heat resistance, low temperature strength and other mechanical properties.
The throat hoop is widely used in automobiles, tractors, forklifts, locomotives, ships, mines, oil, chemical, pharmaceutical, agriculture and other water, oil, steam, dust, etc., is the ideal connection fastener.
It is mainly divided into British, American, and German three types.
American throat band: divided into iron plating galvanized and stainless steel two kinds.
All models reach the export level, with the hardness, wear resistance and high temperature resistance added to extend the service life of the product. -

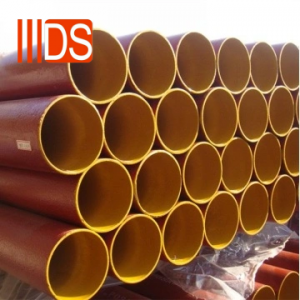

Cast Iron SML Pipes
Dinsen supplies full range of EN877 SML drainage cast iron pipe and fittings from DN 50 up to DN 300.
EN877 SML cast iron pipes are suitable for installation inside or outside of buildings for drainage of rainwater and other sewage.
Compared with plastic pipe, SML cast iron pipes and fitting has many advantages, such as environmental friendly and long lifetime, fire protection, low noise, easy to install and maintain.
SML cast iron pipes are internally finished with epoxy coating to prevent from fouling and corrosion.
Inside: fully cross-linked epoxy,thickness min.120μm
Outside: reddish brown base coat,thickness min.80μm -
BML/TML/KML/MLK Pipe
EN877 KML cast iron pipe
Sizes: DN40 to DN400, including DN70 and DE75 for part European market
Standard: EN877
Material: Grey iron
Application: Construction drainage,grease-containing waste water,pollution discharge,rain water
Painting:
Outside:thermal spray zinc coating min.130g/m2 + top coat grey expoxy resin min.60μm (as you requirement)
Inside:fully cross-linked epoxy,double layer thickness min.240μm
payment term: T/T, L/C, or D/P
Production capacity: 1500 tons/ month
Delivery time: 20-30 days, depend on your quantity.
MOQ: 1*20 container
Features: Flat and straight ; high strength and density without defect;easy to install and maintain ; long lifetime ,fireproof and noise resistant; environmental protection -
![Ductile Iron Pipe [EN545]](http://www.dinsenmetal.com/uploads/aeb8892a-300x300.jpg)
Ductile Iron Pipe [EN545]
Ductile iron pipes and fittings
Pipe Size: DN80-DN1000
Fittings Size: DN80-DN1600
Ductile Iron Pipe: 150,000 Tons/Year
Surface Treating: Bitumen coating
Epoxy coating (Blue and Red color)
Seal coating (On the cement surface)
Standards: ISO2531; EN545, EN598;
Zinc coating: Standard: ISO8179
Average Mass ≥130g/㎡;
Partial Lowest : ≥ 110g/㎡
Mass Can be Customized:200g/m2 400g/m2 Zn-Al alloy -
Cast Iron Rainwater Pipes
We supply a complete range of Rainwater pipes and fittings.
Our range of cast iron rainwater products are available in standard grey metal primer with rust inhibitors.
Cast iron rainwater products offer a wide choice of designs. Pipes can be round, square or rectangular.Pipes should be straight with a consistent metal thickness. The external should be even and without any obvious defects like cracking or uneven wall thickness. The inside of the pipe shouldn’t have any obstructions that could restrict the flow of water. -
Pipe cutter
Product name: Pipe cutter
Voltage: 220-240V (50-60HZ)
Saw blade center hole: 62mm
Product power: 1000W
Saw blade diameter: 140mm
Load speed: 3200r/min
Scope of use: 15-220mm，75-415mm
Product Weight: 7.2kg
Maxthickness: Steel 8mm, Plastic 12mm, Stainless steel 6mm
Cutting material: Cutting steel, plastic, copper, cast iron, stainless steel and multilayer tubes
Advantages and innovations: precision cutting;cutting method is simple;high safety;lightweight, easy to carry and easy to operate on-site;cutting will not produce sparks and dust to the outside world;inexpensive, cost-effective. -
No Hub-SML Flange pipe
A pipe flange is a disc, collar or ring that attaches to pipe with the purpose of providing increased support for strength, blocking off a pipeline or implementing the attachment of more items. They are usually welded or screwed to the pipe end and are connected with bolts. A gasket is inserted between the two mating flanges to provide a tighter seal. These flanges are either custom with dimensions provided by the customer or they are manufactured according to published specifications. -
Hubless-SML Rectangle Access Pipe
SML Rectangle pipes, foul and surface water drainage system
Includes a wide variety of components, such as Bends, Junctions, Rodding Access and Access Fittings, together with Inspection Chambers and Manhole Bases.
